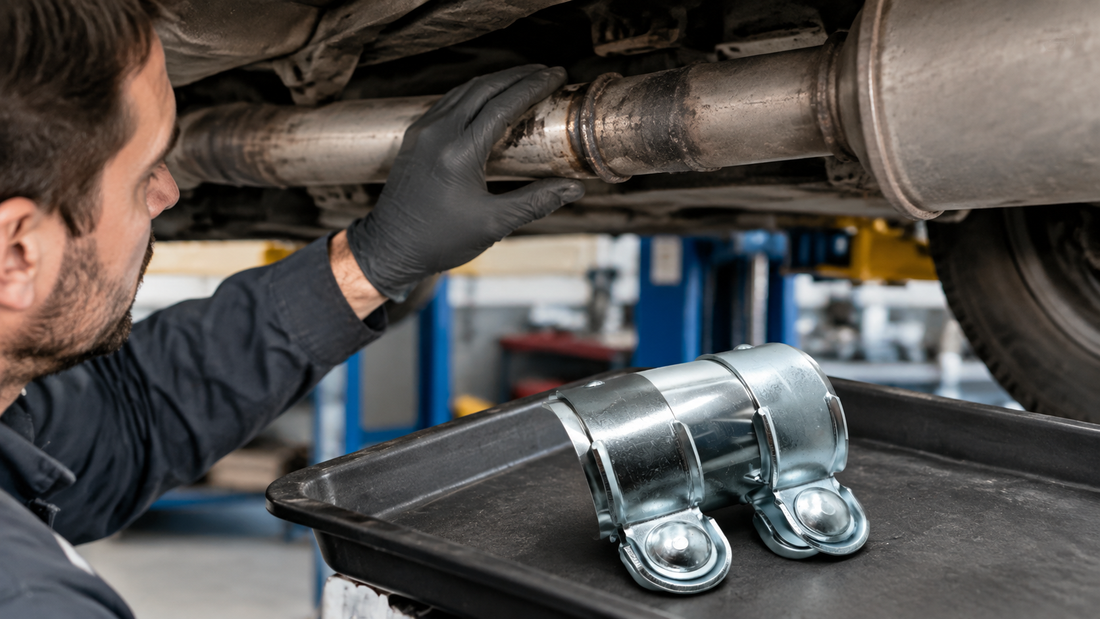

1K0253141J 7L0253141C Exhaust Pipe Dual Clamp for VW Passat and CC: Diagnosis and OE Fitment Guide

QUICK ANSWER

A confirmed leak, movement or joint damage at an exhaust pipe connection should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Exhaust Pipe Dual Clamp clamps a specified exhaust-pipe joint so the connected sections remain aligned and sealed with the applicable gasket and fasteners. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Soot trace is localized at the clamped exhaust joint
• Exhaust noise or puffing changes when the joint is inspected cold
• Clamp is cracked, corroded, distorted or no longer holds the joint
• Pipe movement or a low-hanging exhaust is traced to the joint support

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Allow the exhaust system to cool fully before inspection
2. Trace soot and noise to the exact joint instead of assuming the clamp is the only fault
3. Inspect pipe ends, flanges, gasket, retaining clip, studs, nuts and nearby supports for distortion or cracks
4. Measure the pipe or clamp diameter and confirm the dual-clamp profile before ordering
5. Compare exhaust layout, engine, emissions configuration, production date and every OE suffix
6. After installation, follow the specified fastener procedure and check for leaks, clearance and exhaust movement

OEM REFERENCE

• 1K0253141J
• 7L0253141C

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Volkswagen parts records identify 1K0253141J as a dual exhaust clamp used to secure a specified exhaust-pipe joint; it is also described as a muffler or pipe connector clamp.
• The 1K0253141J clamp is the later reference associated with 7L0253141C; both OE numbers must be retained for comparison rather than treating them as unrelated products.
• Aftermarket technical catalogs describe a double-clamp profile around 65 mm diameter and approximately 90 mm length, but the installed pipe diameter and actual joint geometry remain decisive.
• Verified applications include selected Volkswagen Passat, Passat CC, Touareg and Golf exhaust configurations; engine, emissions system, production date and market can change the joint.
• A soot trace or exhaust noise can also come from a cracked pipe, failed gasket, flex section, catalyst or loose hanger, so trace the exact leak before replacement.
• Inspect the clamp, gasket, retaining clips, studs, nuts and nearby heat shields, and follow the applicable tightening and clearance procedure after installation.
• Volkswagen and Audi catalog records identify 7L0253141C as an earlier dual exhaust clamp reference superseded by 1K0253141J in specified markets and applications.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Passat
• VOLKSWAGEN CC
• VOLKSWAGEN Touareg
• VOLKSWAGEN Golf

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Exhaust pipe ends, gasket and retaining clips
• Muffler, catalyst, particulate filter and flex section
• Exhaust hangers, heat shields, studs and self-locking fasteners

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

Review 1K0253141J / 7L0253141C product images and fitment details.
