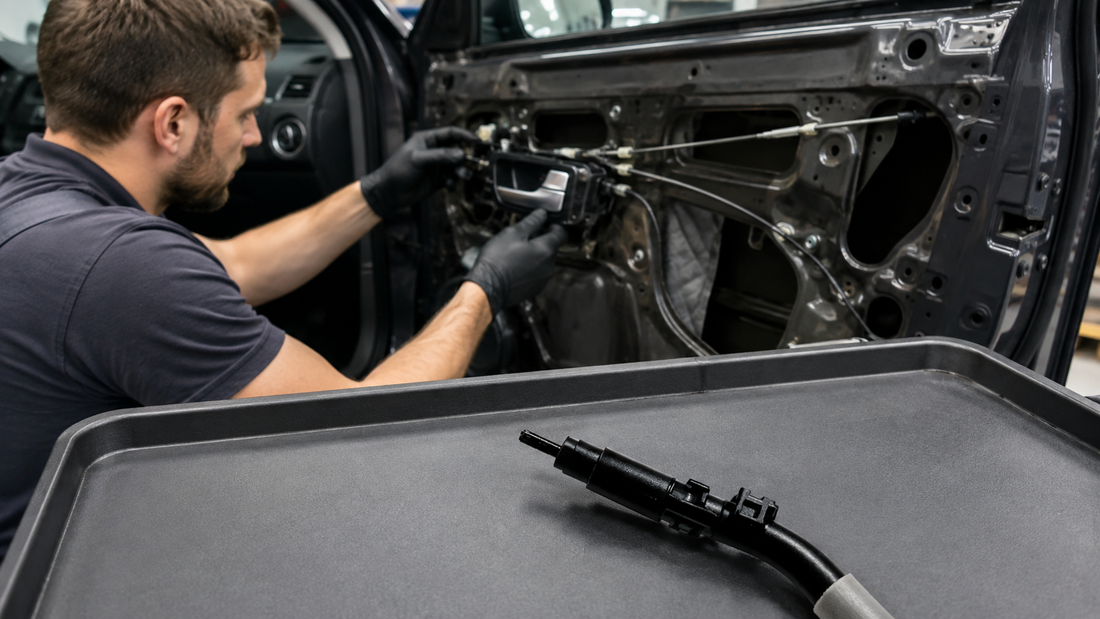

5GD837017B Exterior Door Handle Bowden Cable for VW Bora and Tiguan: Diagnosis and OE Fitment Guide

QUICK ANSWER

An exterior door handle that moves but does not release the latch correctly should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Exterior Door Handle Bowden Cable transmits movement from the exterior door handle to the door-latch release mechanism through a protected mechanical inner cable. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Exterior handle movement does not release the latch
• The handle feels unusually loose after the cable or end fitting is inspected
• Cable sheath, end fitting or retaining clip is visibly damaged or displaced
• Latch operation is restored when the release lever is moved directly but not from the exterior handle

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Confirm the door can be opened safely before dismantling trim or latch components
2. Operate the exterior handle while observing cable and latch movement after gaining approved access
3. Inspect the handle carrier, cable ends, sheath seating, clips and latch lever for breakage or displacement
4. Distinguish a failed cable from a frozen latch, failed actuator, damaged handle carrier, child lock or wiring fault
5. Compare cable length, sheath, both end fittings, front or rear door, left or right side, production date and every OE suffix before ordering
6. After assembly, verify exterior and interior release, locking, deadlock and child-lock functions before closing the door

OEM REFERENCE

• 5GD837017B

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Volkswagen catalog diagrams place 5GD837017B in the door-latch, interior-release and exterior-handle assembly as a Bowden cable used at both front- and rear-door diagrams.
• Verified catalog applications include selected China-market Volkswagen Bora and Tiguan configurations; market, model generation and production date must be confirmed by VIN.
• Catalog placement does not prove universal four-door interchangeability: compare front or rear position, left or right handle carrier, latch arrangement and cable end geometry before ordering.
• Do not confuse 5GD837017B with nearby longer interior-release cables such as model-specific 19G837085 or 5NG837085 references shown in the same door diagrams.
• A non-opening exterior handle can also result from a displaced retainer, damaged handle carrier, seized latch, actuator fault or door wiring issue, so inspect the mechanism before replacing the cable.
• Retain the full B suffix during OE comparison and confirm the installed number, door position and VIN rather than matching only the 5GD837017 base.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Bora
• VOLKSWAGEN Tiguan

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Exterior handle and handle carrier
• Door latch, mechanical release lever and lock actuator
• Cable retainers, door wiring and interior release cable

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

Review 5GD837017B product images and fitment details.

WORKSHOP AND BULK ORDERS

Repair shops and distributors can send an OE list, quantities and vehicle information for fitment review and bulk-order support.
