5N0837017D 5N0837017B 5N0837017C Exterior Door Handle Bowden Cable for VW Golf and Jetta: Diagnosis and OE Fitment Guide

QUICK ANSWER

An exterior door handle that moves but does not release the latch correctly should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Exterior Door Handle Bowden Cable transmits movement from the exterior door handle to the door-latch release mechanism through a protected mechanical inner cable. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Exterior handle movement does not release the latch
• The handle feels unusually loose after the cable or end fitting is inspected
• Cable sheath, end fitting or retaining clip is visibly damaged or displaced
• Latch operation is restored when the release lever is moved directly but not from the exterior handle

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Confirm the door can be opened safely before dismantling trim or latch components

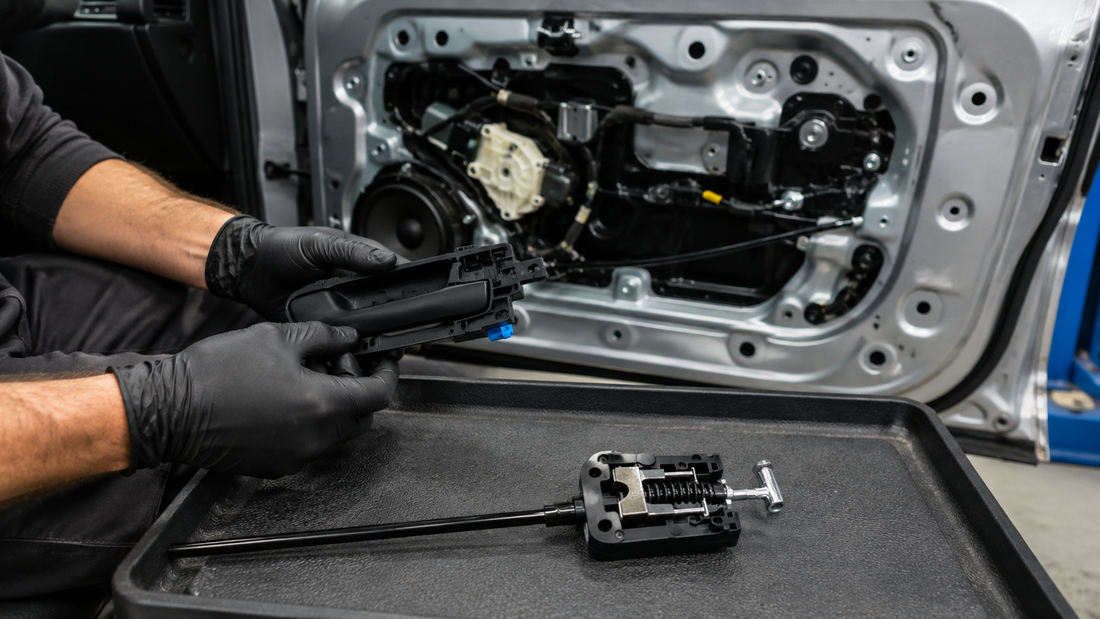

2. Operate the exterior handle while observing cable and latch movement after gaining approved access
3. Inspect the handle carrier, cable ends, sheath seating, clips and latch lever for breakage or displacement
4. Distinguish a failed cable from a frozen latch, failed actuator, damaged handle carrier, child lock or wiring fault
5. Compare cable length, sheath, both end fittings, front or rear door, left or right side, production date and every OE suffix before ordering
6. After assembly, verify exterior and interior release, locking, deadlock and child-lock functions before closing the door

OEM REFERENCE

• 5N0837017D
• 5N0837017B
• 5N0837017C

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Volkswagen and established parts catalogs identify 5N0837017D as the Bowden cable connecting the exterior door handle to the door latch, not the longer interior release cable.
• Volkswagen replacement records identify 5N0837017A, 5N0837017B and 5N0837017C as earlier revisions replaced by 5N0837017D; the listed B, C and D references are retained for ordering comparison.
• Technical catalog data describes an approximately 578 mm cable with a protective sleeve, but overall length, both end fittings and sheath retainers must still match the removed part.
• Verified catalog applications include selected Volkswagen Golf, Jetta and Tiguan doors; front or rear, left or right, body style and production-date restrictions require VIN confirmation.
• A non-opening exterior handle does not prove cable failure: inspect cable seating and clips, handle carrier, latch mechanism, actuator, child lock and door wiring before ordering.
• A nearby 5N0837017E reference is associated with later production applications and must not be assumed interchangeable without VIN and production-date confirmation.
• Volkswagen replacement records identify 5N0837017B as an earlier exterior door-handle Bowden cable revision superseded through 5N0837017C to 5N0837017D.
• Volkswagen replacement records identify 5N0837017C as an earlier exterior door-handle Bowden cable revision replaced by 5N0837017D.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Golf
• VOLKSWAGEN Jetta
• VOLKSWAGEN Tiguan

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Exterior handle and handle carrier
• Door latch, mechanical release lever and lock actuator
• Cable retainers, door wiring and interior release cable

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.
