5Q0121070AB 5Q0121070BR Engine Coolant Pipe: Diagnosis and OE Fitment Guide

QUICK ANSWER

A suspected rigid coolant-pipe leak or cooling-system bypass-line fault should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Engine Coolant Pipe routes engine coolant through a rigid molded line between specified cooling-system connections. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Dried coolant residue or fresh wetness is visible around the pipe or connector
• Coolant level drops after correct filling and bleeding
• Rigid pipe body, bracket or quick connection is cracked or damaged
• Leak is confirmed during an approved cooling-system pressure test

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

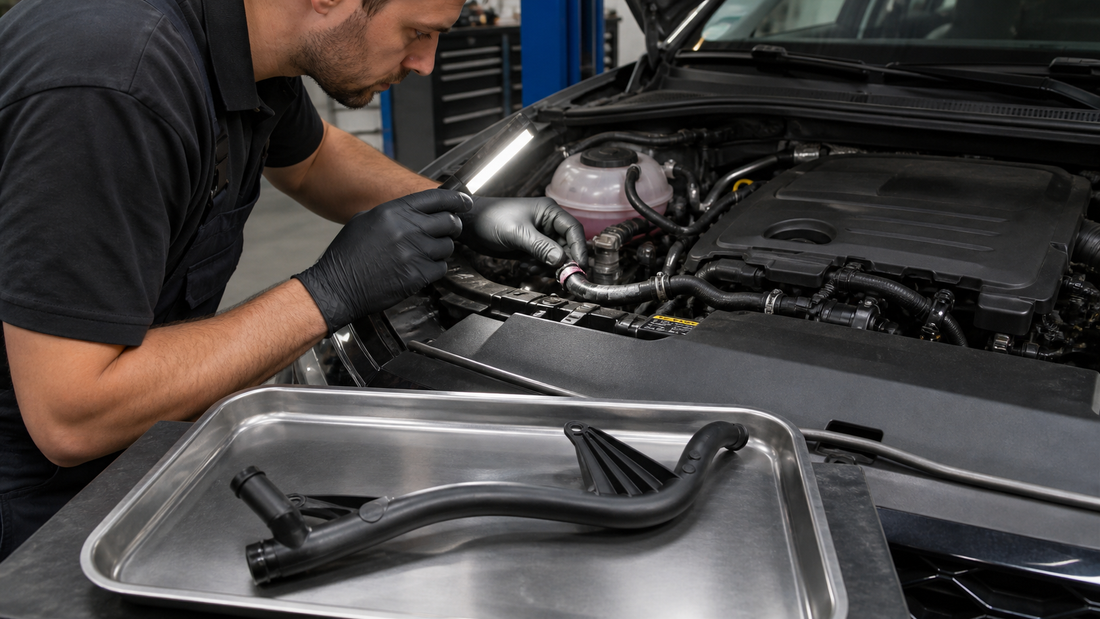

1. Allow the engine to cool fully before inspection
2. Trace fresh residue to the highest leak point
3. Pressure-test the cooling system according to vehicle procedures
4. Inspect O-rings, retaining clips, connected hoses and mounting points
5. Compare the complete rigid-pipe routing, branch positions and every connector before ordering

OEM REFERENCE

• 5Q0121070AB
• 5Q0121070BR

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Catalog references associate 5Q0121070AB with the later 5Q0121070BR engine-coolant-pipe reference.
• Volkswagen catalog references identify 5Q0121070BR as a front engine coolant pipe or cooling-system bypass line.
• Volkswagen catalog references list 5Q0121070AB as the superseded reference for 5Q0121070BR.
• Application depends on engine and production configuration; compare the rigid-pipe routing, connectors and VIN before ordering.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Jetta
• VOLKSWAGEN Tiguan
• VOLKSWAGEN Golf
• VOLKSWAGEN Passat

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Expansion-tank supply hose and connected coolant regulator or turbocharger line
• O-rings, retaining clips and adjacent quick connectors
• Water pump, thermostat housing and other nearby leak paths

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

Review 5Q0121070AB / 5Q0121070BR product images and fitment details.

WORKSHOP AND BULK ORDERS

Repair shops and distributors can send an OE list, quantities and vehicle information for fitment review and bulk-order support.
