03C121065F Engine Coolant Pipe: Diagnosis and OE Fitment Guide
QUICK ANSWER
A suspected rigid coolant-pipe leak or cooling-system bypass-line fault should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.
WHAT THIS PART DOES
The Engine Coolant Pipe routes engine coolant through a rigid molded line between specified cooling-system connections. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.
SYMPTOM SNAPSHOT
- Dried coolant residue or fresh wetness is visible around the pipe or connector
- Coolant level drops after correct filling and bleeding
- Rigid pipe body, bracket or quick connection is cracked or damaged
- Leak is confirmed during an approved cooling-system pressure test
These symptoms are diagnostic clues, not a guarantee that this part has failed.
DIAGNOSIS BEFORE ORDERING
- Allow the engine to cool fully before inspection
- Trace fresh residue to the highest leak point

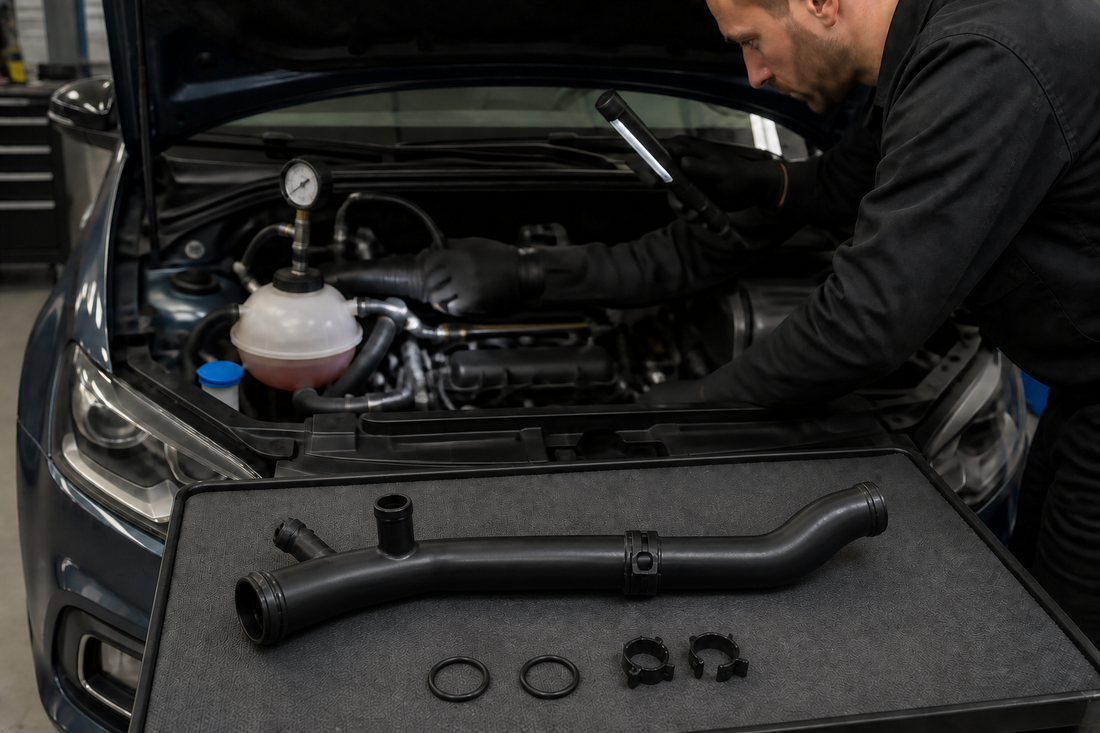

- Pressure-test the cooling system according to vehicle procedures
- Inspect O-rings, retaining clips, connected hoses and mounting points
- Compare the complete rigid-pipe routing, branch positions and every connector before ordering
OEM REFERENCE
- 03C121065F
Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.
OE-SPECIFIC BUYING CHECK
- Volkswagen Group and independent parts catalogs identify 03C121065F as a rigid molded engine coolant pipe, not a flexible coolant hose.
- Technical listings describe a glass-fibre-reinforced plastic pipe of roughly 370-390 mm with four inlet or outlet connections used between specified thermostat, water-pump and engine-cooler circuits.
- Verified applications are engine-specific and include selected 1.4 TSI configurations such as CAVE and CTHE as well as other 03C engine families; model name alone is not sufficient for fitment.
- Compare all four connection positions, pipe curvature, mounting points, seals, engine code, production date and VIN before ordering, and pressure-test the cooled system to locate the highest fresh leak point.
VEHICLE APPLICATION REFERENCES
- VOLKSWAGEN Beetle
- VOLKSWAGEN Scirocco
- VOLKSWAGEN Jetta
- VOLKSWAGEN Golf
- VOLKSWAGEN Passat
Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.
WHEN REPLACEMENT IS JUSTIFIED
Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.
RELATED PARTS TO INSPECT
- Expansion-tank supply hose and connected coolant regulator or turbocharger line
- O-rings, retaining clips and adjacent quick connectors
- Water pump, thermostat housing and other nearby leak paths
VIN CHECK
Confirm fitment using OE number and VIN before ordering.
For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.
CHECK THE PART AND OE DETAILS
Review 03C121065F product images and fitment details.
WORKSHOP AND BULK ORDERS
Repair shops and distributors can send an OE list, quantities and vehicle information for fitment review and bulk-order support.
