5C0145770 5C0145770A 5C0145770C Turbo Boost Pipe for VW Beetle and Scirocco: Charge-air or boost leak diagnosis

QUICK ANSWER

A suspected charge-air or boost leak should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Turbo Boost Pipe carries pressurized intake air between turbocharging and intake-system components. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Reduced or inconsistent acceleration under load
• Hissing noise during boost
• Oil mist around a charge-pipe joint
• Split pipe, damaged seal or loose connection found during inspection

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Read boost-related faults and operating data
2. Inspect the full charge-air path, clamps and seals

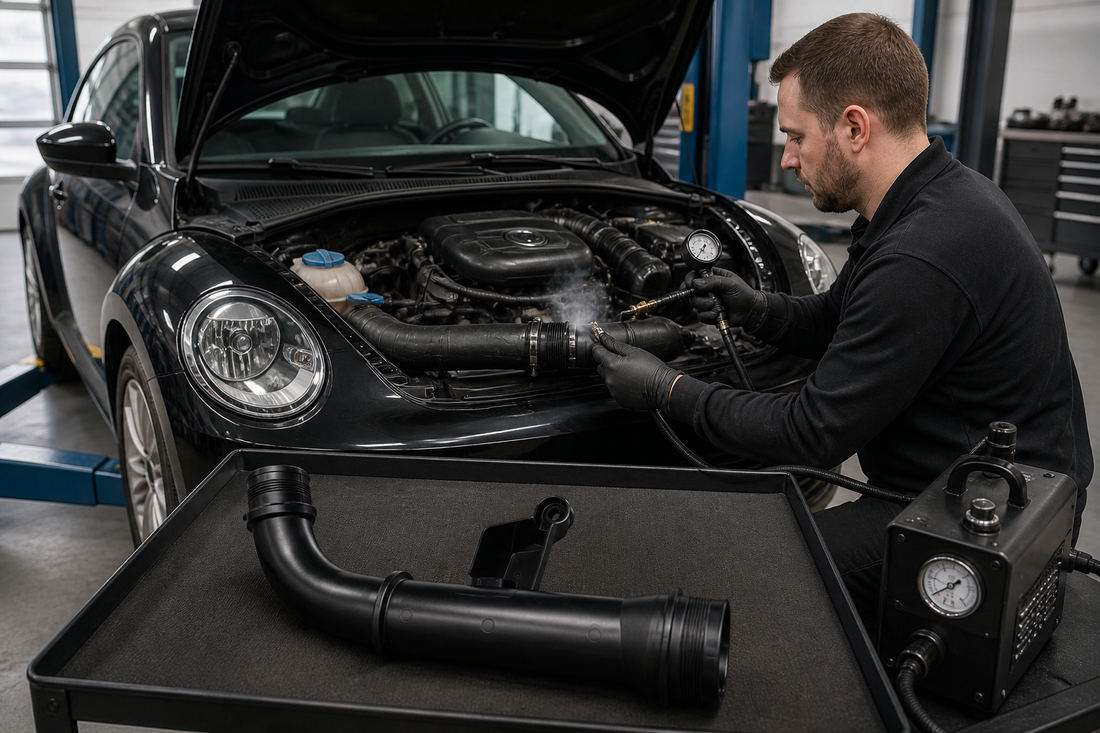

3. Use an appropriate smoke or pressure test following vehicle procedures
4. Compare pipe routing, connections and mounting points before ordering

OEM REFERENCE

• 5C0145770
• 5C0145770A
• 5C0145770C

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Volkswagen parts catalogs identify 5C0145770 as a charge-air or intercooler air pipe and record a production-date change to 5C0145770A in specified applications.
• The unsuffixed reference appears in specified Beetle, Jetta, Passat and Scirocco catalogs, but model name alone does not establish fitment; engine, production date and VIN remain required.
• Catalog and dismantler references identify 5C0145770A as the turbocharger-to-intercooler or charge-air outlet pipe and associate it with earlier 5C0145770.
• Volkswagen catalog data separates 5C0145770 and 5C0145770A at a production-date boundary in some vehicles, so compare the installed connector form and build date before ordering.
• Volkswagen parts listings identify 5C0145770C as the later intercooler pressure or outlet pipe and explicitly list 5C0145770 and 5C0145770A as replaced references.
• Applications vary by 1.8-litre or 2.0-litre engine, market and production date; compare both couplers, retaining grooves, mounting bracket, complete bend and VIN before treating the revision chain as interchangeable for a specific vehicle.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Beetle
• VOLKSWAGEN Scirocco
• VOLKSWAGEN Jetta

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• O-rings and retaining clips
• Intercooler connections
• Adjacent intake and PCV hoses

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

Review 5C0145770 / 5C0145770A / 5C0145770C product images and fitment details.

WORKSHOP AND BULK ORDERS

Repair shops and distributors can send an OE list, quantities and vehicle information for fitment review and bulk-order support.
