03L131547L 03L131547G 04L131547S EGR Gasket for VW Golf and Scirocco: EGR valve or cooler joint leak diagnosis

QUICK ANSWER

A suspected EGR valve or cooler joint leak should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The EGR Gasket seals an exhaust-gas recirculation joint between the EGR valve, cooler or connected exhaust-flow components. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Dry soot tracks are concentrated around an EGR sealing joint
• Puffing or exhaust-gas leakage is traced to the EGR flange
• Metal sealing ring is distorted or burned after disassembly
• An EGR-related fault is accompanied by physical evidence of joint leakage

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Allow the exhaust and EGR components to cool before inspection
2. Trace soot and leakage to the exact flange
3. Inspect both mating faces for warping, cracks and carbon buildup
4. Check clamps, fasteners and connected component alignment
5. Compare ring diameter, locating tabs, flange profile and every OE reference before ordering

OEM REFERENCE

• 03L131547L
• 03L131547G
• 04L131547S

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Parts catalogs identify 03L131547L as a two-bolt EGR valve or exhaust-gas-recirculation pipe gasket, not a turbocharger oil-line seal.
• Cross-reference catalogs group 03L131547G, 03L131547L and 04L131547S with the same EGR gasket specification, so all three OE references are retained.

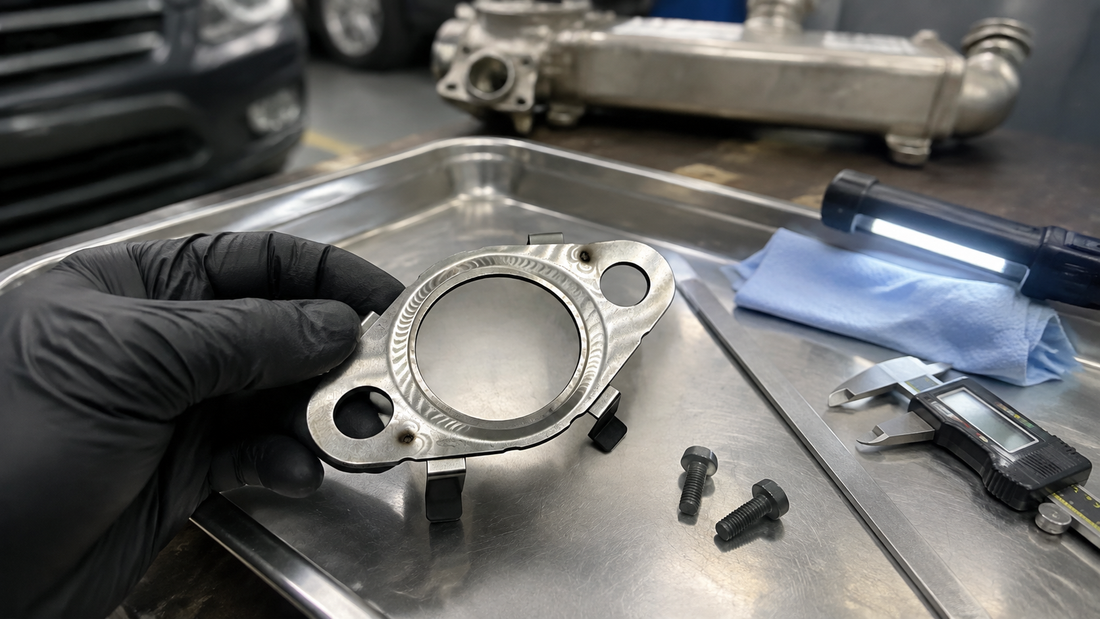

• Technical listings describe a layered metal gasket approximately 64 mm long and 37-39 mm wide, with an inner opening around 26.5 mm and two mounting bores.
• Verified applications include selected Volkswagen Group diesel configurations; model name alone cannot establish engine, production-date or emissions-system fitment.
• Confirm leakage by tracing dry soot or exhaust-gas escape to the exact EGR joint, then compare opening diameter, bolt spacing, locating tab and flange profile before ordering.
• Allow the exhaust, turbocharger and EGR components to cool fully before inspection and follow the applicable workshop procedure.
• Cross-reference catalogs identify 03L131547G in the same two-bolt EGR gasket family as 03L131547L and 04L131547S.
• Cross-reference catalogs identify 04L131547S as a two-bolt EGR gasket with the same approximately 64 mm length and 26.5 mm inner opening used for this verified group.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Golf
• VOLKSWAGEN Scirocco

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• EGR valve and cooler flange condition
• Connected pipe, DPF joint or exhaust-flow component
• Clamps, fasteners and nearby temperature or pressure lines

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

Review 03L131547L / 03L131547G / 04L131547S product images and fitment details.
