03L131547N 03K131547C 03K131547B EGR Gasket for VW Passat: EGR valve or cooler joint leak diagnosis

QUICK ANSWER

A suspected EGR valve or cooler joint leak should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

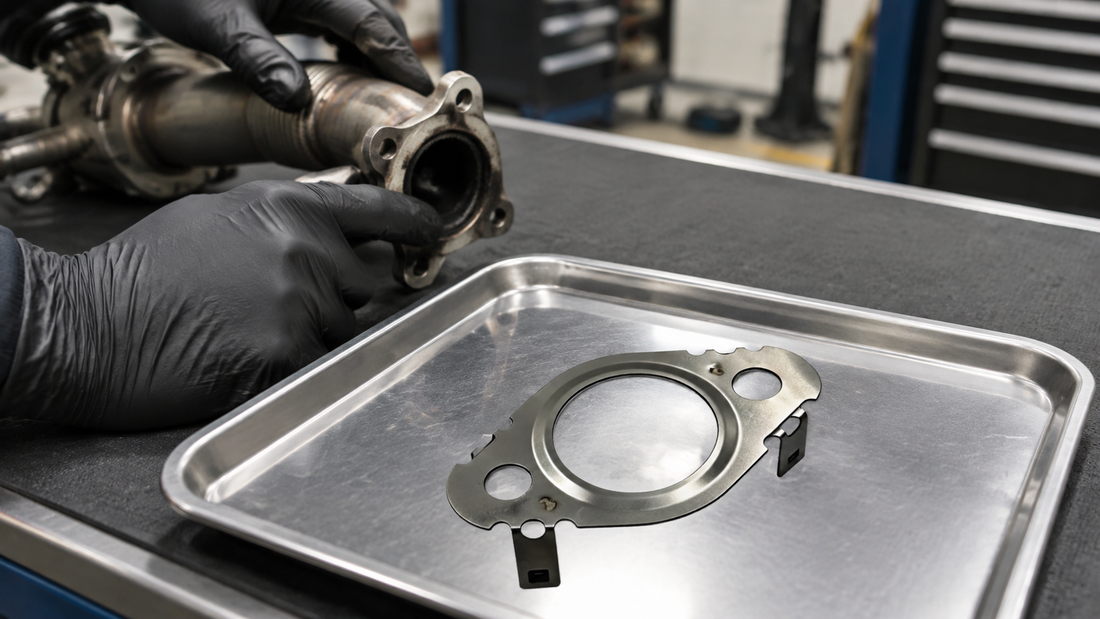

The EGR Gasket seals an exhaust-gas recirculation joint between the EGR valve, cooler or connected exhaust-flow components. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Dry soot tracks are concentrated around an EGR sealing joint
• Puffing or exhaust-gas leakage is traced to the EGR flange
• Metal sealing ring is distorted or burned after disassembly
• An EGR-related fault is accompanied by physical evidence of joint leakage

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Allow the exhaust and EGR components to cool before inspection
2. Trace soot and leakage to the exact flange
3. Inspect both mating faces for warping, cracks and carbon buildup
4. Check clamps, fasteners and connected component alignment
5. Compare ring diameter, locating tabs, flange profile and every OE reference before ordering

OEM REFERENCE

• 03L131547N
• 03K131547C
• 03K131547B

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Volkswagen genuine-parts catalogs identify 03L131547N as an exhaust-gas-recirculation tube gasket used at an EGR valve, cooler or engine-side connection, not a turbocharger oil-line seal.
• Volkswagen supersession records identify 03K131547B and 03K131547C as earlier references replaced by 03L131547N, so all three OE numbers are retained.
• Verified catalog data supports selected 2012-2014 Volkswagen Passat 2.0-liter diesel EGR valve and exhaust-cooler applications; engine code, production date, market and VIN remain decisive.
• Dry soot tracking or exhaust-gas escape localized to the exact EGR tube joint can justify gasket replacement, but an EGR fault code alone cannot identify this gasket as failed.
• Inspect the connected EGR tube, valve or cooler, both mating faces, fasteners and alignment before ordering or installing the gasket.
• Allow the exhaust and EGR components to cool fully before inspection and follow the applicable emissions-system service procedure.
• Volkswagen supersession records identify 03K131547C as an earlier EGR tube gasket reference replaced by 03L131547N.
• Volkswagen supersession records identify 03K131547B as an earlier EGR tube gasket reference replaced by 03K131547C and ultimately 03L131547N.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Passat

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• EGR valve and cooler flange condition
• Connected pipe, DPF joint or exhaust-flow component
• Clamps, fasteners and nearby temperature or pressure lines

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.
