06H103495E 06H103495A 06H103495AC Oil Separator: Diagnosis and OE Fitment Guide

QUICK ANSWER

Suspected crankcase-ventilation or oil-separation malfunction should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Oil Separator separates oil mist from crankcase vapors and routes the ventilation flow through the engine breathing system. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Crankcase pressure or vacuum is outside the expected range during testing
• Oil contamination is concentrated in ventilation hoses beyond normal residue
• Whistling or air leakage is traced to the separator housing or diaphragm area
• Housing, diaphragm connection or hose port is visibly damaged

These symptoms are diagnostic clues, not a guarantee that this part has failed.

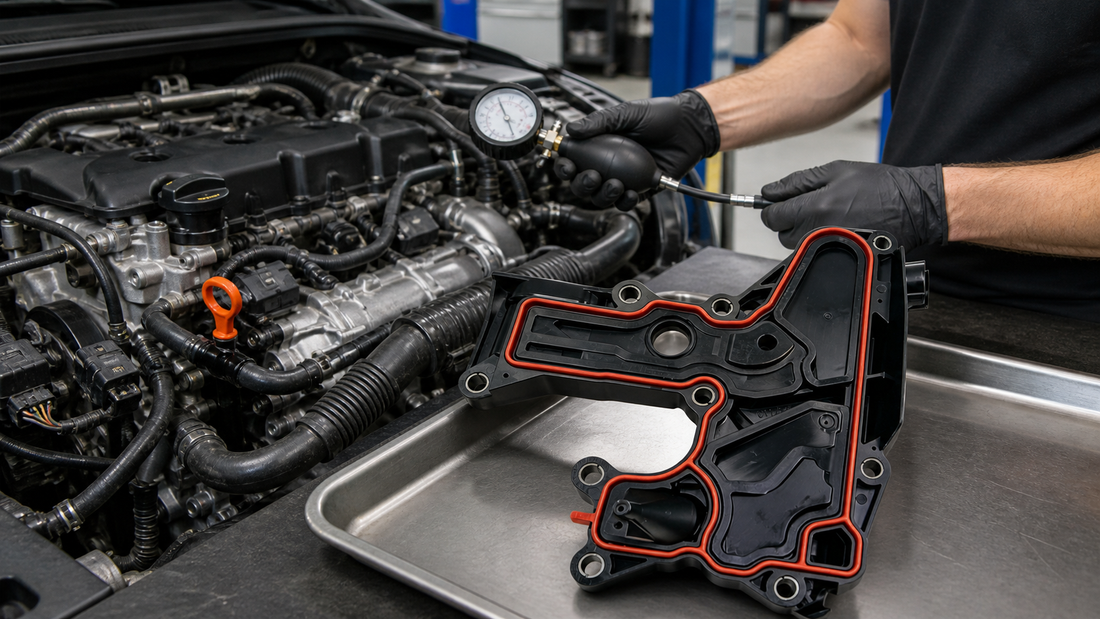

DIAGNOSIS BEFORE ORDERING

1. Measure crankcase pressure or vacuum using the applicable engine procedure
2. Inspect all breather hoses and check valves for restriction or leakage
3. Check the separator housing, seals and mating surfaces
4. Rule out engine wear, overfill and unrelated oil leaks before replacing the separator
5. Compare hose ports, mounting pattern and OE references before ordering

OEM REFERENCE

• 06H103495E
• 06H103495A
• 06H103495AC

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Volkswagen Group catalog references identify 06H103495E as an engine oil separator in the crankcase-ventilation system.
• Catalog history records 06H103495E as superseded by 06H103495AC for specified markets and production dates.
• Volkswagen catalog references identify 06H103495A as an earlier oil-separator reference used on specified 1.8 and 2.0 turbocharged gasoline-engine configurations.
• Volkswagen parts data groups 06H103495A, 06H103495E and 06H103495AC as prior references associated with the later 06H103495AH service part.
• Do not select by model name alone; compare engine code, production date, housing ports, gasket path, pressure specification and VIN before ordering.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Golf
• VOLKSWAGEN Passat

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Crankcase vent hoses and check valves
• Valve-cover or separator seals
• Engine oil level, condition and unrelated leak paths

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

Review 06H103495E / 06H103495A / 06H103495AC product images and fitment details.
