06J115611F 06J115611E 06J115611L Engine Oil Dipstick: Diagnosis and OE Fitment Guide

QUICK ANSWER

A broken, bent or incorrect engine-oil dipstick that prevents a dependable manual oil-level check should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Engine Oil Dipstick provides the specified measuring length and level markings used to check engine-oil level through the matching guide tube. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Dipstick handle, shaft or measuring tip is visibly broken or distorted
• Dipstick does not seat correctly in the matching guide tube
• Level markings are damaged or cannot be read reliably
• Installed dipstick length or handle form does not match the specified engine application

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Park the vehicle as specified and follow the applicable engine oil-level checking procedure
2. Compare total length, measuring range, handle color and seating shoulder with the verified part specification
3. Inspect the guide tube for damage, obstruction and a retained fragment before inserting a replacement
4. Use the electronic oil-level system where specified and do not use a dipstick that is not approved for the engine configuration
5. Confirm engine code, production date, dipstick revision, guide-tube pairing and VIN before ordering

OEM REFERENCE

• 06J115611F
• 06J115611E
• 06J115611L

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Parts references identify 06J115611F as an engine-oil dipstick reference in the same application family as later 06J115611L.
• Volkswagen Group catalog references identify 06J115611E as an engine-oil dipstick, not a dipstick guide tube.
• Application depends on engine and market configuration; the presence of a guide opening alone does not prove that every dipstick revision is suitable.
• Volkswagen official parts information identifies 06J115611L as an engine-oil-level dipstick for specified CC, Beetle, Jetta, Passat and Tiguan applications.
• Parts references associate 06J115611E and 06J115611F with the 06J115611L dipstick family; compare total length, measuring marks, handle and seating geometry before ordering.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Tiguan
• VOLKSWAGEN Golf
• VOLKSWAGEN Passat

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Matching dipstick guide tube and seating point
• Electronic oil-level sensor and instrument indication where fitted
• Engine oil level, condition and correct checking procedure

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

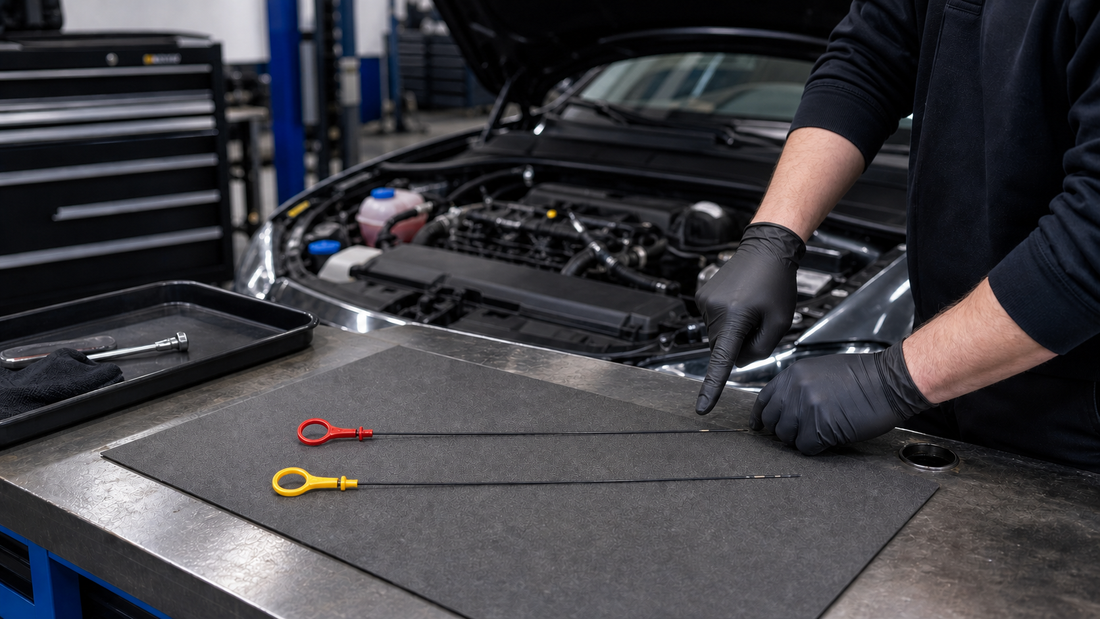

Review 06J115611F / 06J115611E / 06J115611L product images and fitment details.

WORKSHOP AND BULK ORDERS

Repair shops and distributors can send an OE list, quantities and vehicle information for fitment review and bulk-order support.
