06J121497H 06J121497B 06J121497G Turbocharger Coolant Feed Pipe: Diagnosis and OE Fitment Guide

QUICK ANSWER

A confirmed coolant leak or sealing fault in the turbocharger coolant feed pipe should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Turbocharger Coolant Feed Pipe carries engine coolant from the specified cooling-system connection toward the turbocharger on applicable EA888 1.8 TSI and TFSI configurations. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Fresh or dried coolant residue is localized to the feed-pipe connection, corrugated section or end coupling
• A cold cooling-system pressure test reproduces leakage at this exact pipe
• The corrugated metal section, rigid tube or end fitting is visibly cracked, kinked, corroded or distorted
• Coolant loss continues after higher nearby flanges and hoses are cleaned and excluded

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Allow the engine and turbocharger cooling circuit to cool fully before inspection
2. Clean the area and trace the highest fresh coolant source rather than assuming the lowest wet component is leaking
3. Perform the approved cold cooling-system pressure test and inspect both end connections, the corrugated section and full formed routing
4. Distinguish feed-pipe leakage from the turbocharger return line, coolant flange, water pump, thermostat housing, nearby hose or unrelated oil line
5. Compare every bend, corrugated-section length, end coupling, bracket or support point and OE suffix with the removed pipe
6. Confirm EA888 1.8 TSI or TFSI engine code, model, production date, market and VIN before ordering
7. Renew specified seals or retainers, then fill, bleed and pressure-check the cooling system using the approved procedure

OEM REFERENCE

• 06J121497H
• 06J121497B
• 06J121497G

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Volkswagen genuine-parts information identifies 06J121497H as a turbocharger coolant supply pipe in the engine cooling circuit, not a charge-air or boost pipe.
• The pipe supplies coolant to the turbocharger through formed rigid tubing, a corrugated heat-and-movement section and application-specific end connections.
• Volkswagen and Audi replacement data records 06J121497B being replaced by 06J121497H in specified markets and applications.
• Verified application references include selected Volkswagen Golf, Jetta, Passat CC and Tiguan and Audi A3 8P and TT 8J 2.0 TSI or TFSI configurations.
• The presence of 06J121497G in the same product record does not prove universal interchangeability with B or H; compare every bend, coupling, bracket, engine code, production date and VIN.
• Replacing this coolant supply pipe cannot correct low boost, a charge-air leak, turbo control fault or coolant loss from the return pipe, water pump, thermostat housing, flange or another hose.
• 06J121497B is an earlier turbocharger coolant-supply reference replaced by 06J121497H in specified Volkswagen and Audi applications and is retained for OE comparison.
• 06J121497G is retained as a separate coolant-pipe OE reference; available evidence does not justify treating it as universally interchangeable with 06J121497B or 06J121497H.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Golf VI 2.0 TSI
• VOLKSWAGEN Jetta 2.0 TSI
• VOLKSWAGEN Passat CC 2.0 TSI
• VOLKSWAGEN Tiguan 5N 2.0 TSI
• AUDI A3 8P 2.0 TFSI
• AUDI TT 8J 2.0 TFSI
• VOLKSWAGEN Passat 2.0 TSI

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Turbocharger coolant return pipe and seals
• Coolant connection flange and adjacent hoses
• Heat shields, brackets and abrasion or corrosion points
• Water pump, thermostat housing and other cooling-system leak paths

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

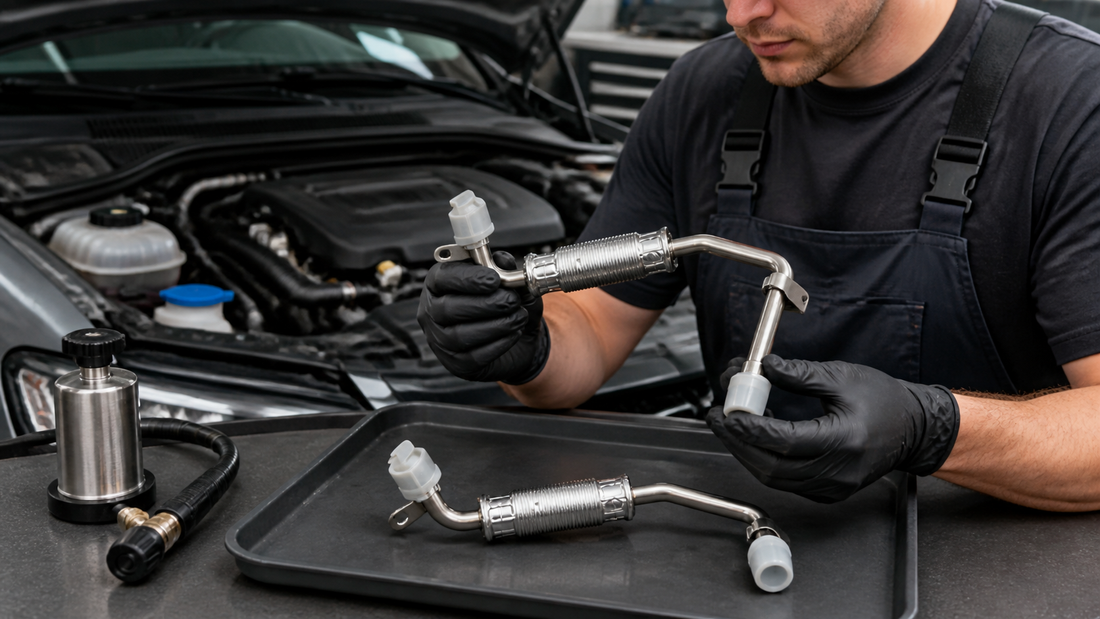

Review 06J121497H / 06J121497B / 06J121497G product images and fitment details.

WORKSHOP AND BULK ORDERS

Repair shops and distributors can send an OE list, quantities and vehicle information for fitment review and bulk-order support.
