03P103634 Engine Oil Dipstick Guide Tube: Diagnosis and OE Fitment Guide

QUICK ANSWER

A cracked, loose or obstructed engine-oil dipstick guide tube should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Engine Oil Dipstick Guide Tube guides the dipstick along the specified path to the engine-oil measuring position and supports a consistent manual oil-level check. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Guide tube is visibly cracked, broken or loose at its mounting point
• Correct dipstick cannot be inserted or removed through the normal path
• Oil seepage is traced to the guide-tube connection or seal
• A broken tube section or foreign obstruction is confirmed during inspection

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Allow the engine to cool and follow the vehicle procedure for checking oil level
2. Confirm the dipstick itself is the correct length and is not bent, broken or leaving a fragment in the tube

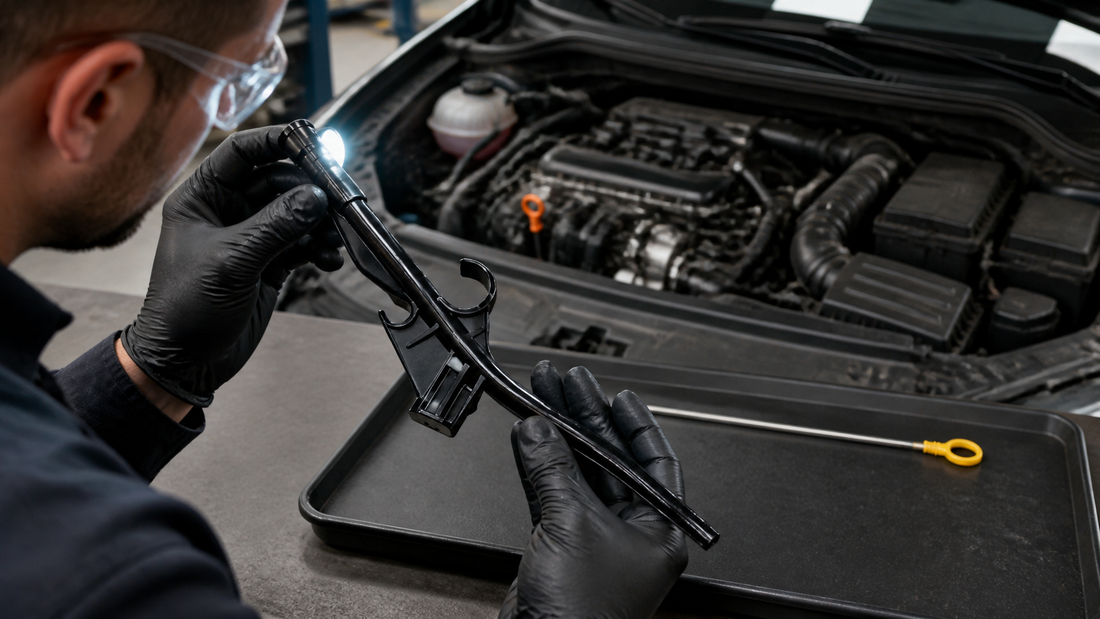

3. Inspect the complete guide tube, mounting bracket, lower connection and seal
4. Rule out oil-pan, oil-level-sensor and unrelated engine-oil leaks
5. Compare tube length, bends, mounting points, lower connection, dipstick pairing, engine code and every OE reference before ordering

OEM REFERENCE

• 03P103634

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Volkswagen Group parts data identifies 03P103634 as the engine-oil dipstick guide tube for specified 1.2 TDI common-rail applications, not the dipstick itself.
• Verified application references include CFWA-engine Volkswagen Polo 6R, Skoda Fabia II and Roomster, and SEAT Ibiza 6J 1.2 TDI configurations.
• The molded tube length, bends, upper funnel, lower sealing connection, mounting bracket and clip geometry must match the removed component.
• Confirm the paired dipstick, CFWA engine code, production date and VIN because a model name alone does not prove fitment.
• Replacing the guide tube cannot correct an incorrect or bent dipstick, oil-level sensor fault, low oil pressure, oil consumption or an unrelated engine-oil leak.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Polo 6R 1.2 TDI
• SKODA Fabia II 1.2 TDI
• SKODA Roomster 1.2 TDI
• SEAT Ibiza 6J 1.2 TDI

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Correct dipstick and handle assembly
• Guide-tube seal, mounting bracket and lower connection
• Oil pan, oil-level sensor and unrelated oil leak paths

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.
