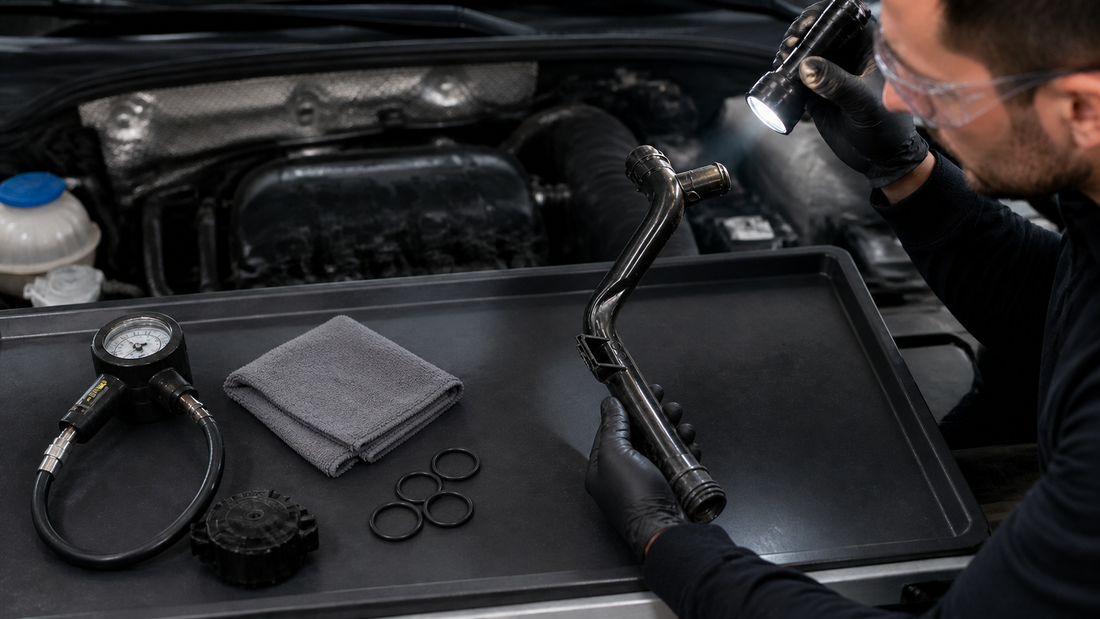

03L121065K Heater Circuit Coolant Pipe for AUDI A4 B8 2.0 TDI and AUDI A5 8T 2.0 TDI: Diagnosis and OE Fitment Guide

QUICK ANSWER

A confirmed leak or connection fault in the coolant-regulator-to-heater-core pipe should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Heater Circuit Coolant Pipe routes coolant from the regulator-housing circuit toward the cabin heater heat exchanger through a rigid three-connection molded pipe. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Dried coolant residue or fresh wetness is localized to one of the three pipe connections
• Coolant level drops after correct filling and bleeding
• The molded pipe body, branch, mounting feature or sealing end is cracked or distorted
• A cold-system pressure test reproduces leakage at this exact pipe or one of its seals

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Allow the engine and heater circuit to cool fully before inspection
2. Clean old residue and trace the highest fresh leak point
3. Pressure-test the cold cooling system according to vehicle procedures
4. Inspect all three connection seals, retaining features, molded branch and mounting point
5. Compare the 235 mm routing, branch angles, connection diameters, engine code, production date and VIN before ordering
6. After repair, fill and bleed the cooling and heater circuit according to the approved procedure and verify cabin heat operation

OEM REFERENCE

• 03L121065K

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Technical catalog data identifies 03L121065K as a molded engine coolant pipe in the coolant-regulator-housing-to-heater-core circuit, not a generic flexible coolant hose.
• The application-specific assembly is approximately 235 mm long, uses glass-fibre-reinforced plastic, has three coolant connections and includes a locating or retaining feature.
• Verified application references include selected 2.0 TDI Audi A4 B8, A5 8T, A6 C7 and Q5 8R and SEAT Exeo 3R configurations.
• Every branch angle, connection diameter, seal interface, mounting point, engine code, production date and VIN must match before ordering.
• Replacing this pipe cannot correct coolant loss from the heater core, coolant regulator housing, water pump, thermostat, expansion tank, radiator or an adjacent hose.

VEHICLE APPLICATION REFERENCES

• AUDI A4 B8 2.0 TDI
• AUDI A5 8T 2.0 TDI
• AUDI A6 C7 2.0 TDI
• AUDI Q5 8R 2.0 TDI
• SEAT Exeo 3R 2.0 TDI

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Coolant regulator housing and its sealing connection
• Heater-core inlet and outlet hoses and firewall connections
• Water pump, thermostat, expansion tank and adjacent coolant pipes

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.
