06K115610D 06K115610K 06K115610F Engine Oil Dipstick Guide Tube: Diagnosis and OE Fitment Guide

QUICK ANSWER

A cracked, loose or obstructed engine-oil dipstick guide tube should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Engine Oil Dipstick Guide Tube guides the dipstick along the specified path to the engine-oil measuring position and supports a consistent manual oil-level check. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Guide tube is visibly cracked, broken or loose at its mounting point
• Correct dipstick cannot be inserted or removed through the normal path
• Oil seepage is traced to the guide-tube connection or seal
• A broken tube section or foreign obstruction is confirmed during inspection

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Allow the engine to cool and follow the vehicle procedure for checking oil level
2. Confirm the dipstick itself is the correct length and is not bent, broken or leaving a fragment in the tube
3. Inspect the complete guide tube, mounting bracket, lower connection and seal
4. Rule out oil-pan, oil-level-sensor and unrelated engine-oil leaks
5. Compare tube length, bends, mounting points, lower connection, dipstick pairing, engine code and every OE reference before ordering

OEM REFERENCE

• 06K115610D
• 06K115610K
• 06K115610F

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Parts and application references identify 06K115610D as an engine-oil dipstick guide tube for specified Volkswagen Group 1.8 and 2.0 turbocharged gasoline-engine applications.
• The guide tube is supplied separately from the measuring dipstick; confirm the listing contents before ordering.
• Application references identify 06K115610K within the EA888 dipstick guide-tube family, but market and engine configuration affect the installed geometry.
• Parts sources use inconsistent translated names for 06K115610F; physical form and application references associate it with the 06K115610 guide-tube family.
• Do not assume D, F and K suffixes are interchangeable: compare total length, tube bends, two-hole bracket, both end fittings, matching dipstick, engine code and VIN.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Golf
• VOLKSWAGEN Passat
• VOLKSWAGEN Atlas

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Correct dipstick and handle assembly
• Guide-tube seal, mounting bracket and lower connection
• Oil pan, oil-level sensor and unrelated oil leak paths

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

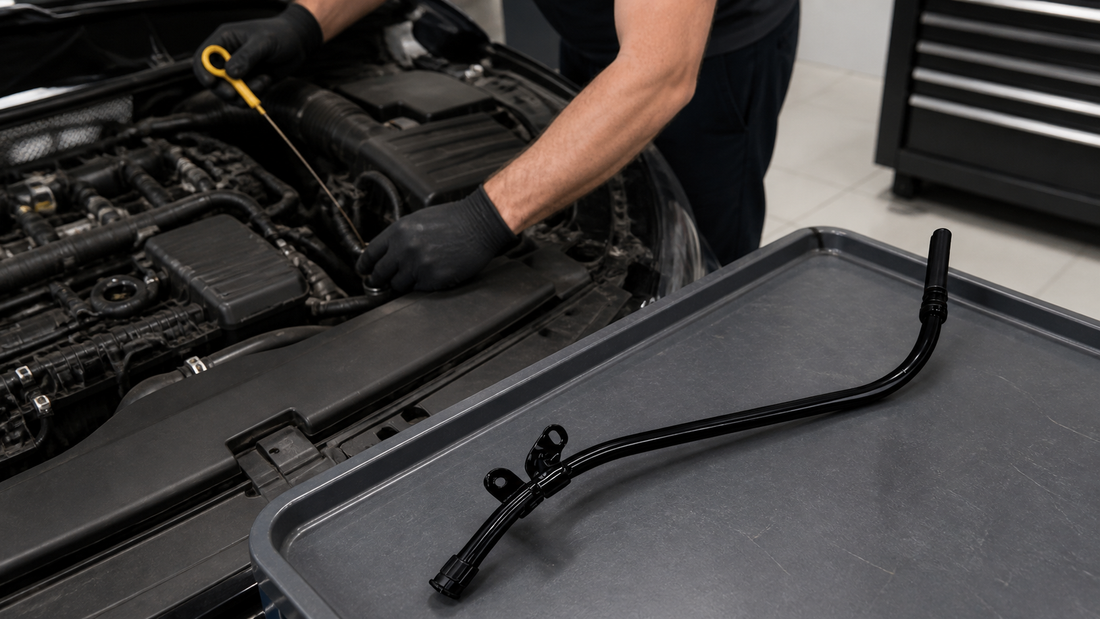

Review 06K115610D / 06K115610K / 06K115610F product images and fitment details.

WORKSHOP AND BULK ORDERS

Repair shops and distributors can send an OE list, quantities and vehicle information for fitment review and bulk-order support.
