5N0145832S 5N0145832D Right Intercooler Pressure Pipe: Diagnosis and OE Fitment Guide

QUICK ANSWER

A confirmed leak, split or connection fault at the right-side intercooler pressure pipe should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Right Intercooler Pressure Pipe carries pressurized charge air through the right-side intercooler connection on applicable Volkswagen Tiguan 5N 2.0 TSI and TFSI configurations. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Reduced or inconsistent acceleration under load with a confirmed charge-air leak
• Hissing or rushing-air noise is localized to the right-side intercooler pipe
• Oil mist or fresh residue is concentrated at this pipe or one of its end couplings
• The hose, rigid coupler, seal or retaining feature is visibly split, distorted or loose

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Read boost-related fault memory and compare requested versus actual boost under the approved test conditions
2. Inspect the complete right-side intercooler pipe, both couplers, seals and retaining features

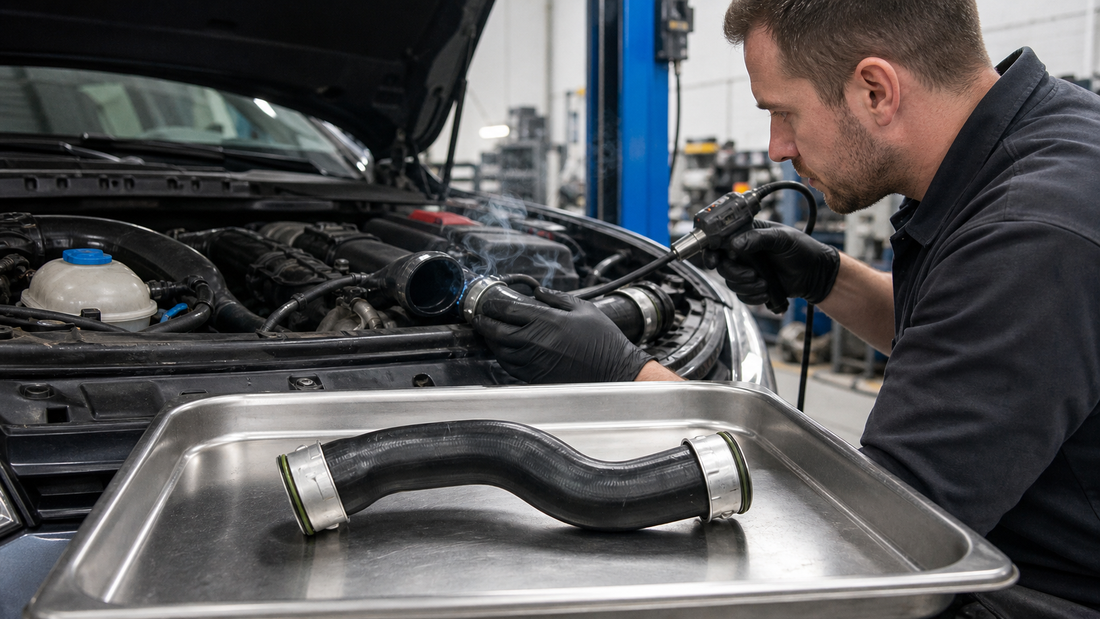

3. Use the workshop-approved smoke or low-pressure charge-air test and localize leakage before replacement
4. Distinguish this pipe from the intercooler, turbo outlet pipe, throttle-side pipe, diverter valve, PCV system and other boost-leak paths
5. Compare right-side position, complete routing, rubber section, metal couplers and every mounting or retaining detail
6. Confirm Tiguan 5N, 2.0 TSI or TFSI engine code, production date, market and VIN before ordering
7. Renew specified seals or retainers and verify charge-air integrity after installation

OEM REFERENCE

• 5N0145832S
• 5N0145832D

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Volkswagen replacement-parts data identifies 5N0145832S as the right-side intercooler pressure pipe or charge-air hose on specified Tiguan 5N applications, not a generic turbo hose.
• Volkswagen parts records show 5N0145832S replacing the earlier 5N0145832D reference in specified markets; both OE numbers are retained for comparison.
• Verified application references include selected Volkswagen Tiguan 5N and Tiguan Limited 2.0 TSI or TFSI configurations, with engine code, production date, market and VIN remaining controlling.
• The complete rubber section, metal couplers, seals, retaining features, right-side location and routing must match the installed pipe before ordering.
• Replacing this pipe cannot correct a boost leak caused by the intercooler, another charge pipe, a seal, diverter valve, PCV system or turbocharger control fault.
• 5N0145832D is the earlier right-side intercooler pressure-pipe reference replaced by 5N0145832S in specified Tiguan applications; it is retained as an OE reference rather than treated as a separate hose.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Tiguan 5N 2.0 TSI
• VOLKSWAGEN Tiguan 5N 2.0 TFSI
• VOLKSWAGEN Tiguan Limited 2.0 TSI

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Pipe O-rings, seals and retaining clips
• Right-side intercooler inlet and end tank
• Adjacent turbocharger outlet and throttle-side charge pipes
• Diverter valve, PCV system and other boost-leak paths

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.
