06J121497D 06J121497J 06J121497E Turbocharger Coolant Feed Pipe: Diagnosis and OE Fitment Guide

QUICK ANSWER

A confirmed coolant leak or sealing fault in the turbocharger coolant feed pipe should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Turbocharger Coolant Feed Pipe carries engine coolant from the specified cooling-system connection toward the turbocharger on applicable EA888 1.8 TSI and TFSI configurations. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Fresh or dried coolant residue is localized to the feed-pipe connection, corrugated section or end coupling
• A cold cooling-system pressure test reproduces leakage at this exact pipe
• The corrugated metal section, rigid tube or end fitting is visibly cracked, kinked, corroded or distorted
• Coolant loss continues after higher nearby flanges and hoses are cleaned and excluded

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

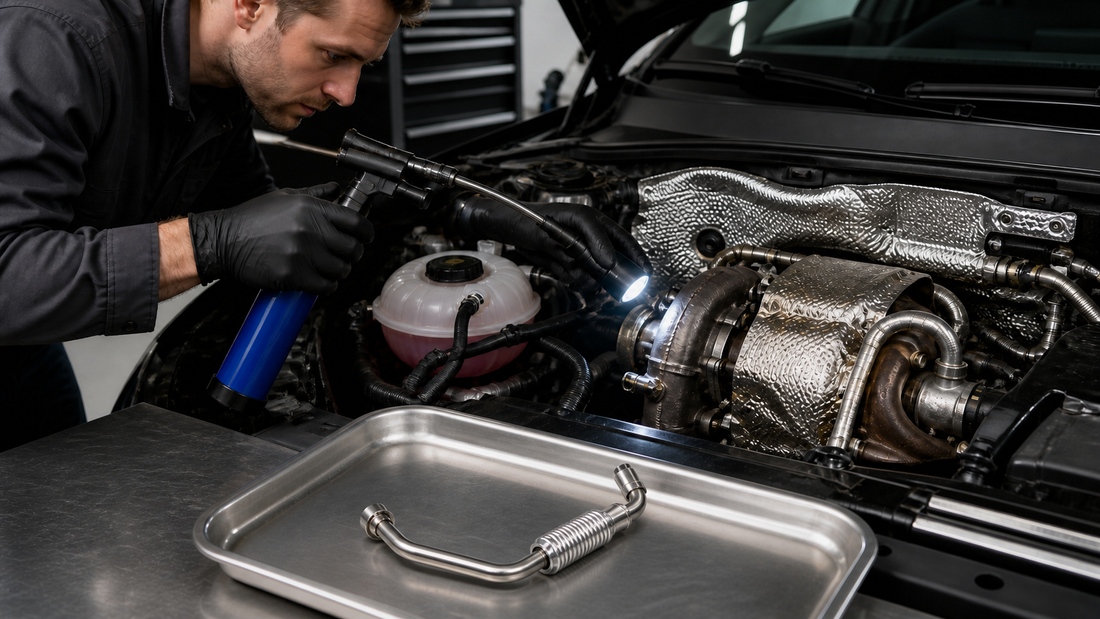

1. Allow the engine and turbocharger cooling circuit to cool fully before inspection
2. Clean the area and trace the highest fresh coolant source rather than assuming the lowest wet component is leaking
3. Perform the approved cold cooling-system pressure test and inspect both end connections, the corrugated section and full formed routing
4. Distinguish feed-pipe leakage from the turbocharger return line, coolant flange, water pump, thermostat housing, nearby hose or unrelated oil line
5. Compare every bend, corrugated-section length, end coupling, bracket or support point and OE suffix with the removed pipe
6. Confirm EA888 1.8 TSI or TFSI engine code, model, production date, market and VIN before ordering
7. Renew specified seals or retainers, then fill, bleed and pressure-check the cooling system using the approved procedure

OEM REFERENCE

• 06J121497D
• 06J121497J
• 06J121497E

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• 06J121497D is an intermediate turbocharger coolant-feed reference replaced by 06J121497J in specified applications and is retained for OE comparison.
• Volkswagen Group parts data identifies 06J121497J as a turbocharger coolant feed pipe in the engine cooling circuit, not a charge-air or boost pipe.
• Catalog descriptions place this feed line between a cooling-system connection flange or pipe and the exhaust turbocharger on specified EA888 1.8 TSI and TFSI applications.
• The assembly combines formed coolant tubing, a corrugated heat-and-movement section and specific end couplings; every bend, end form and support point controls identification.
• Catalog replacement history records 06J121497E being replaced by 06J121497D, followed by 06J121497D being replaced by 06J121497J in specified markets.
• Verified application references include selected Volkswagen Golf VI and Passat B6 or B7 1.8 TSI configurations, with engine code, production date, market and VIN remaining controlling.
• Replacing this coolant feed pipe cannot correct low boost, an intercooler leak, turbo control fault or coolant loss from the return line, coolant flange, water pump, thermostat housing or another hose.
• 06J121497E is an earlier turbocharger coolant-feed reference replaced by 06J121497D in specified applications; it is not evidence of a charge-air component.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Golf VI 1.8 TSI
• VOLKSWAGEN Passat B6 1.8 TSI
• VOLKSWAGEN Passat B7 1.8 TSI

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Turbocharger coolant return pipe and seals
• Coolant connection flange and adjacent hoses
• Heat shields, brackets and abrasion or corrosion points
• Water pump, thermostat housing and other cooling-system leak paths

VIN CHECK

Confirm fitment using OE number and VIN before ordering.
