04E145875A 04E145875C 04E145875F Turbocharger Outlet-to-Charge-Pipe Adapter: Diagnosis and OE Fitment Guide

QUICK ANSWER

A confirmed leak, crack or locking fault at the turbocharger outlet-to-charge-pipe adapter should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The Turbocharger Outlet-to-Charge-Pipe Adapter joins the turbocharger outlet to the adjoining pressurized charge-air pipe on applicable EA211 1.2 TSI and 1.4 TSI configurations while sealing and retaining the connection. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• A low-pressure smoke or charge-air test localizes leakage to the adapter joint
• Oil mist or dust tracking is concentrated around the adapter seal rather than along the full pipe
• The polymer adapter body, locking tabs or retaining features are visibly cracked or distorted
• The sealing ring is cut, flattened, displaced or no longer retained correctly

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Read boost-related faults and operating data, but do not identify this adapter from a fault code alone
2. Inspect the adapter body, green sealing ring, locking tabs, retaining features and both mating pipe surfaces

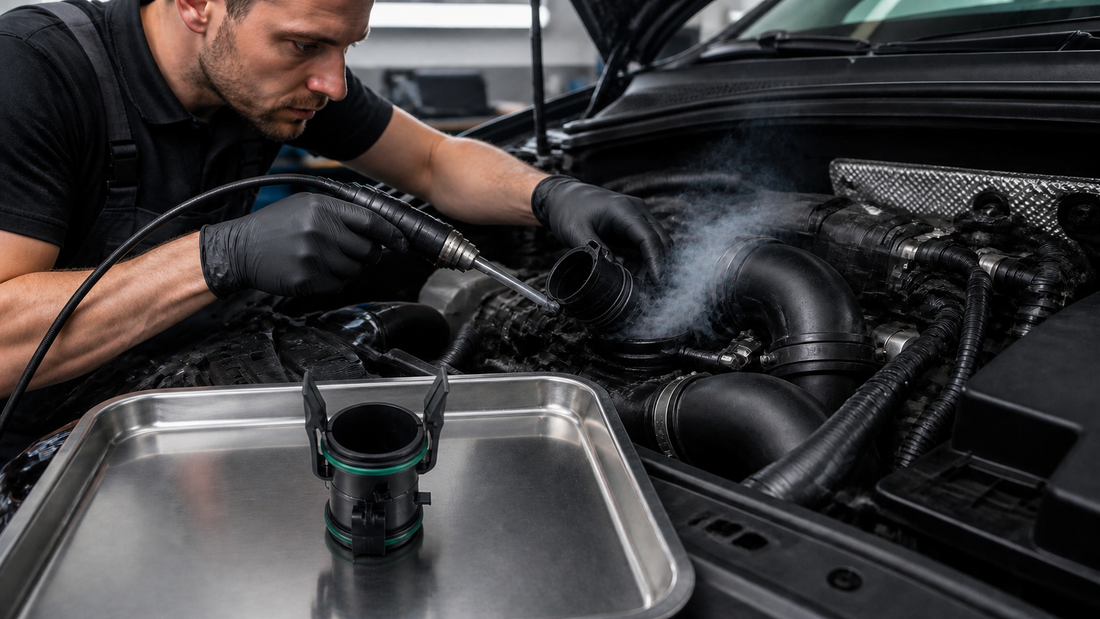

3. Use the approved low-pressure smoke or charge-air test and localize leakage at this exact joint
4. Distinguish an adapter leak from a split charge hose, damaged rigid pipe, turbo outlet fault, intercooler leak, diverter-valve fault or PCV leak
5. Compare adapter length, bore, external tabs, seal position, mating geometry and every OE suffix with the removed part
6. Confirm EA211 engine code, model, production date, market and VIN; treat suffix A as a cross-reference unless a VIN-specific replacement record confirms it
7. Renew the specified seal and retainer where required, then verify charge-air integrity after assembly

OEM REFERENCE

• 04E145875A
• 04E145875C
• 04E145875F

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Aftermarket catalogs associate 04E145875A with the same EA211 charge-air adapter family, but universal A-to-C-or-F interchangeability is not assumed without matching geometry, engine code and VIN evidence.
• 04E145875C is the previous turbo-outlet charge-pipe adapter revision replaced by 04E145875F in specified applications and is retained as an OE reference for comparison.
• Volkswagen genuine-parts information identifies 04E145875F as a turbocharger pressure-pipe connection or intercooler-pipe adapter, not a complete turbo boost pipe.
• The adapter joins the turbocharger outlet to the adjoining charge-air pipe and relies on its polymer body, sealing ring and locking or retaining features to maintain a pressure-tight joint.
• Volkswagen replacement data lists 04E145875F as replacing the earlier 04E145875C reference in specified applications.
• Verified application references include selected EA211 1.2 TSI and 1.4 TSI Volkswagen Group vehicles; the product record is limited to Volkswagen Jetta 1.4 TSI and Audi A3 8V 1.4 TFSI references.
• Replacing this adapter cannot correct low boost caused by a split hose, damaged rigid pipe, intercooler leak, turbocharger fault, diverter valve, PCV system or control fault.

VEHICLE APPLICATION REFERENCES

• VOLKSWAGEN Jetta 1.4 TSI
• AUDI A3 8V 1.4 TFSI

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Adapter sealing ring and retaining features
• Turbocharger outlet mating surface
• Adjacent rigid and flexible charge-air pipes
• Intercooler, diverter valve, PCV system and other boost-leak paths

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.
