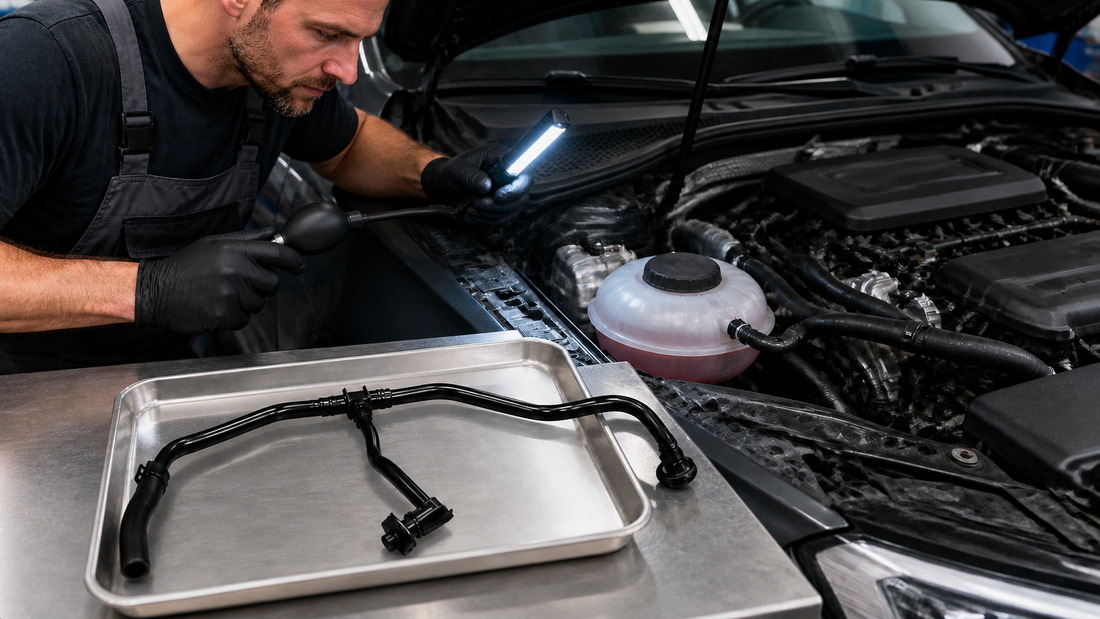

8W0121081AN 8WD121081C 2.0 TFSI Coolant Breather and Expansion-Tank Bypass Line: Diagnosis and OE Fitment Guide

QUICK ANSWER

A confirmed leak, crack or damaged connector in the upper coolant breather and expansion-tank bypass line should be confirmed through physical inspection and the workshop checks appropriate to this component before a replacement part is ordered. The same symptom can have more than one cause, so compare the installed component, all OE references, connections and vehicle information.

WHAT THIS PART DOES

The 2.0 TFSI Coolant Breather and Expansion-Tank Bypass Line provides the specified upper coolant breather and bypass path between the rear cylinder-head coolant flange and expansion tank on applicable Audi B9 2.0 TFSI configurations. Its role does not prove that it is the cause of a customer complaint; diagnosis must connect the observed fault to this component.

SYMPTOM SNAPSHOT

• Fresh coolant residue is localized to the upper breather-line body, branch or connector
• A molded plastic junction or end fitting is visibly cracked, brittle or broken
• A cold pressure test reproduces leakage at this exact line while higher connections remain dry
• The line was disturbed during nearby engine work and a connector or branch no longer seals

These symptoms are diagnostic clues, not a guarantee that this part has failed.

DIAGNOSIS BEFORE ORDERING

1. Allow the engine to cool fully and depressurize the cooling system before inspection
2. Clean the rear cylinder-head and expansion-tank line route, then trace the highest fresh coolant source
3. Perform the approved cold pressure test and inspect the complete line, every branch, connector, seal and retaining feature
4. Distinguish line failure from the rear coolant flange, expansion tank, cap, adjacent hose, water-pump or thermostat housing
5. Compare the complete preformed routing, branch count, rear-flange connector, expansion-tank connection and every support point
6. Confirm B9 model, 2.0 TFSI engine code, production date, market and VIN; treat 8WD121081C as a cross-reference requiring physical confirmation
7. Renew specified seals or retainers, then fill, bleed and pressure-check the cooling system using the approved procedure

OEM REFERENCE

• 8W0121081AN
• 8WD121081C

Every verified OE reference from the product record is retained. Revision letters and alternate numbers must not be discarded during comparison.

OE-SPECIFIC BUYING CHECK

• Audi genuine-parts data identifies 8W0121081AN as an engine-coolant breather tube or expansion-tank bypass line for specified B9 2.0 TFSI applications, not a generic coolant hose.
• The assembly runs in the upper engine-bay cooling circuit between the rear cylinder-head coolant-flange area and the expansion tank, with its complete molded routing and branches controlling identification.
• Verified application references include selected Audi A4 B9, A4 Allroad B9, A5 B9 and A5 Sportback B9 2.0 TFSI configurations from the relevant production period.
• Aftermarket cross-reference catalogs associate 8WD121081C with 8W0121081AN, but this does not establish unconditional interchangeability across every engine, market or production date.
• Replacing this line cannot correct coolant loss caused by the rear coolant flange, expansion tank, cap, another hose, water pump, thermostat housing or incorrect filling and bleeding.
• 8WD121081C is retained as an aftermarket cross-reference for the B9 coolant breather-line assembly; compare every branch, connector, support point, engine code and VIN before treating it as equivalent to 8W0121081AN.

VEHICLE APPLICATION REFERENCES

• AUDI A4 B9 2.0 TFSI
• AUDI A4 Allroad B9 2.0 TFSI
• AUDI A5 B9 2.0 TFSI
• AUDI A5 Sportback B9 2.0 TFSI

Model names are reference points only. Production date, engine, market specification and connector changes can affect compatibility.

WHEN REPLACEMENT IS JUSTIFIED

Replacement is reasonable when inspection or workshop testing confirms damage or a functional failure that matches the role of this component. If the evidence conflicts with the product function, continue diagnosis instead of replacing the part.

RELATED PARTS TO INSPECT

• Rear cylinder-head coolant flange and seal
• Expansion tank and pressure cap
• All line connectors, O-rings and retaining clips
• Adjacent coolant hoses, water-pump and thermostat housing

VIN CHECK

Confirm fitment using OE number and VIN before ordering.

For fitment questions, share the OEM part number, VIN number, or vehicle information with our team before ordering.

CHECK THE PART AND OE DETAILS

Review 8W0121081AN / 8WD121081C product images and fitment details.

WORKSHOP AND BULK ORDERS

Repair shops and distributors can send an OE list, quantities and vehicle information for fitment review and bulk-order support.
